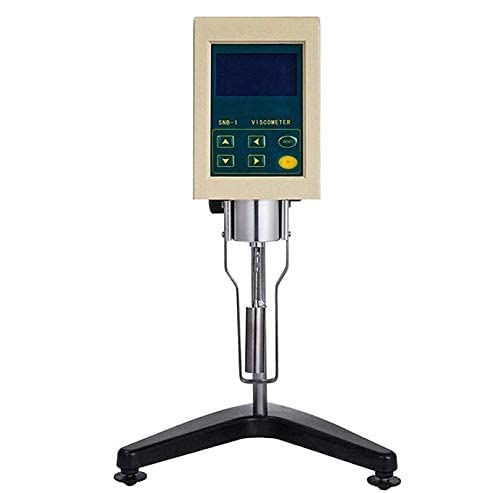

Digital Rotary Viscometer LCD Display Rotational Viscosity Measuring Meter with Measurement Range 1~1 x 100000mPa with Temperature Display

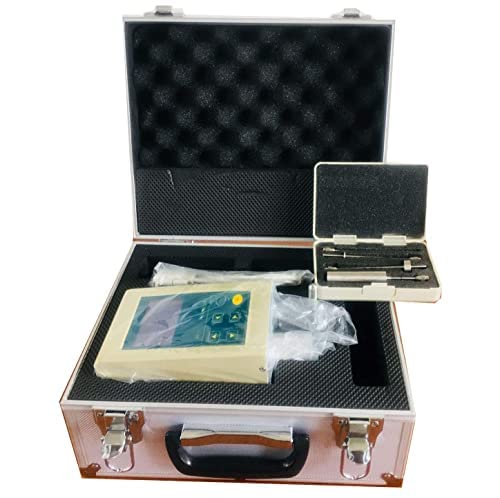

Shipping Policy : Battery and Liquid not included during the shipping SNB-1is a Digital rotary viscometer which has been upgraded. This viscometer adopts advanced mechanical design technology, manufacturing process and micro computer control technology, make the data acquisition correct and the display adopts LCD with blue backlight and high brightness, make the displayed data clear. Technical Specifications * Model:SNB-1 * Measurement range: 1~1×10^5 mPa·s * Rotor types: 1#, 2#, 3# and 4# rotors; * Rotor velocity: 6 rpm, 12 rpm, 30 rpm, and 60 rpm（automatic） * Measurement error: ±5% (Newton liquid) * RS232 interface: The standard software can be connected with the computer to observe the change of viscosity * Print function: printer for print data * Power supply: 220V±10% 50z±10% or 110V(according to your country’s voltage) * Ambient temperature: 5°C~ 35°C; Relative humidity: ≤80% * Standard Accessories: SNB-1 Viscometer; Rotors, 1#, 2#, 3# and 4#; Power adapter; printer ;Protection bracket, Base, Lifting assembly, Operation manual, License; Quality certificate Optional Accessories: 0# rotor, (can be measured the low viscosity to 0.1 mPa); If you need Optional Accessories,Please contact us. Operation procedures 1)Prepare the liquid to be measured and put it into a glass beaker or a right angle container with the diameter not smaller than 70 mm and the height not less than 125mm. 2)Take care of the liquid temperature. 3)Ensure the instrument is level. 4)Adjust the lifting screw and put the rotor into the measured liquid till the level mark on the rotor reach the liquid surface. 5)Control panel operation and display interface

• ◆ The instrument was designed and manufactured with 4 rotors (1#, 2#, 3#, 4#) and 4 different velocity (6 rpm, 12 rpm, 30 rpm, and 60 rpm), which enable it to measure any viscosity value in the given range.
• ◆ SNB-1Digital rotary viscometer is used for determining the liquid viscose capacity and the absolute viscosity. Comparing with other similar products, this instrument has the following features; High measuring accuracy; Stable in measured display;;
• ◆ <b>Working principle </b><br>: This instrument is a rotary viscometer, rotor could be rotated constantly by the variable speed motor. Rotate the standard rotor, the rotors will subject to a torque moment proportional to liquid viscosity because of the liquid viscose hysteresis. The torque moment will be measured by the sensors and processed into the viscosity and shown on the display.

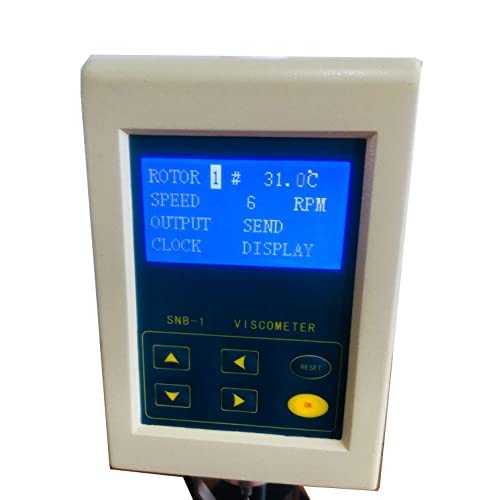

• ◆ This instrument adopts micro computer technology, range (rotor number and speed) can be set and the data determined by sensor can be processed conveniently, and the rotor number、speed、viscosity etc. can be displayed clearly on LCD.
• ◆ Easy operation and read-out; Excellent in Anti- interference; SNB-1has been widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives.
